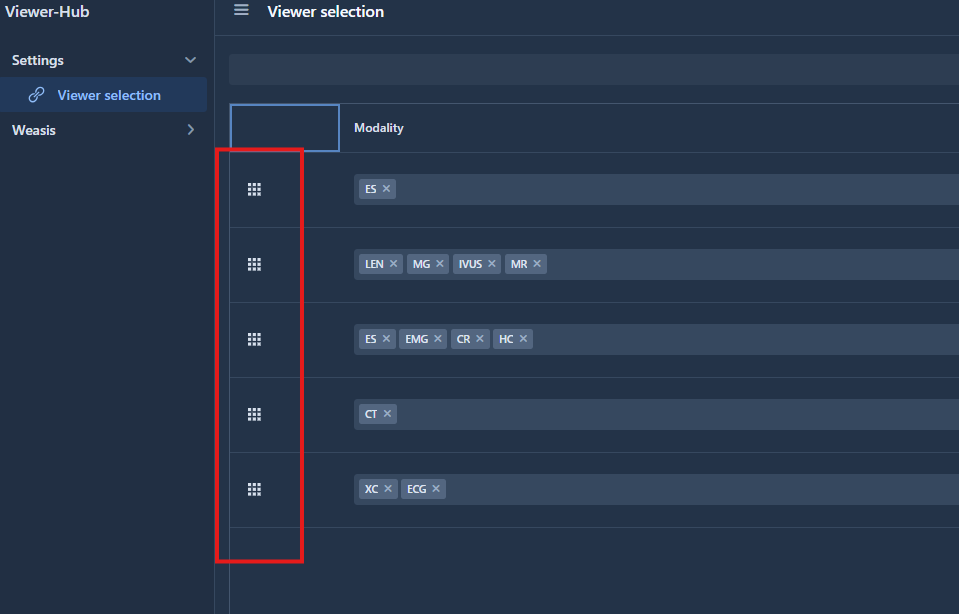

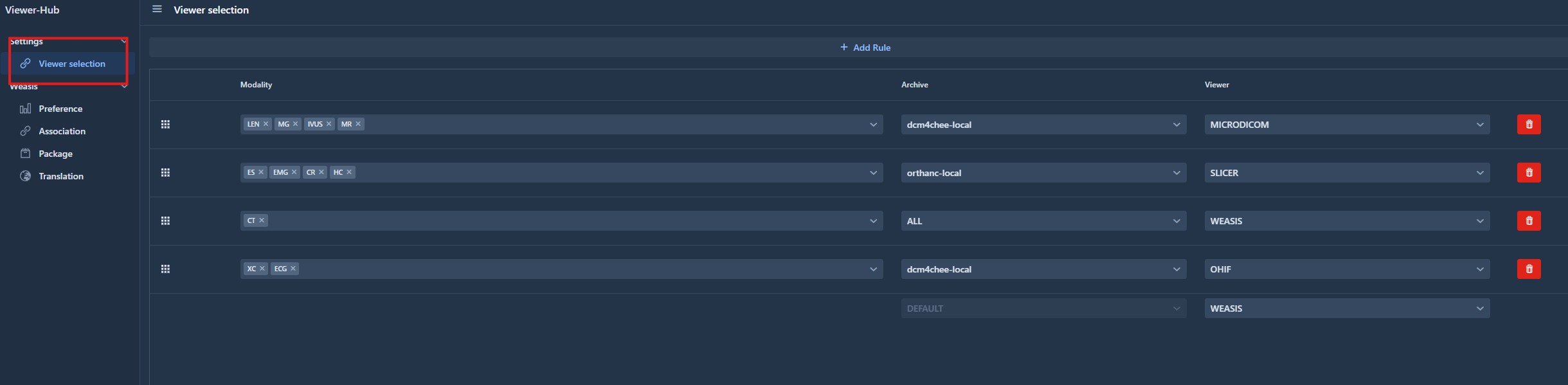

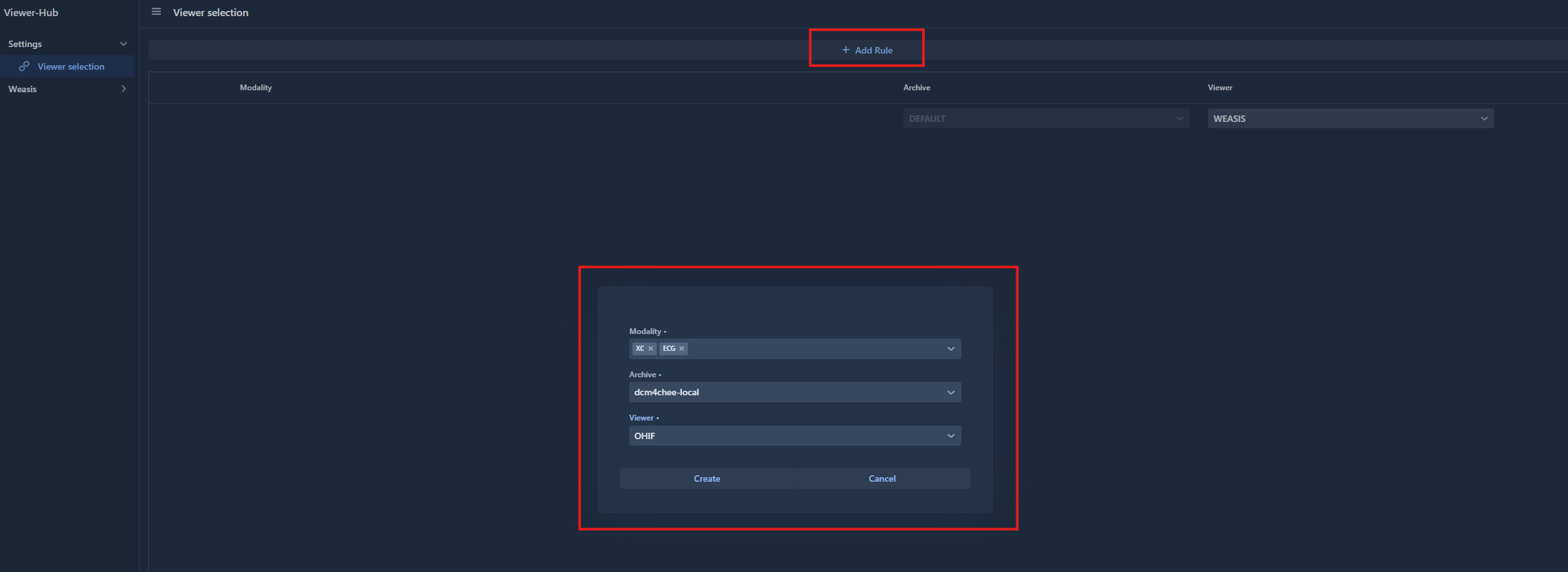

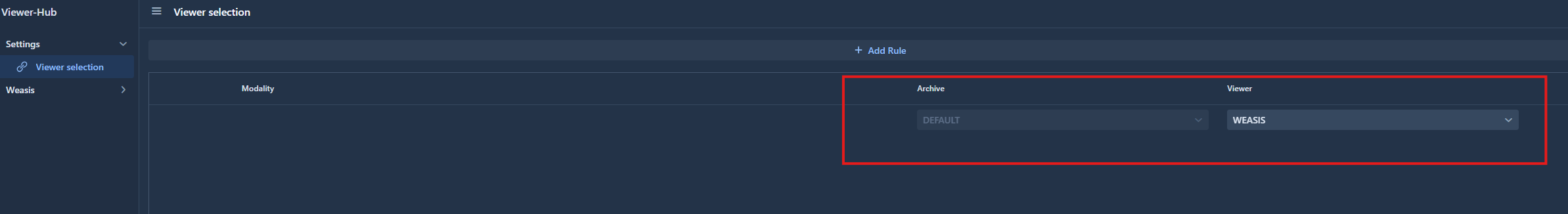

ViewerHub

ViewerHub is the successor to weasis-pacs-connector. This is a server component with an administration interface for managing preferences, plugins and versions of Weasis with DICOM archives.

Essentially, it simplifies the management of Weasis in IT environments and facilitates connections to DICOM archives.

The main features of ViewerHub are:

  • Management of Weasis user preferences
  • Control of launch contexts and profiles by user, group, or host
  • Handling of live minor version updates of Weasis at the client side
  • Management of Weasis translation packages
  • Integration with connectors for DICOM archives
  • Configuration of Keycloak clients and token transmission for DICOMWeb or WADO URI calls

Here is a list of pages related to ViewerHub documentation:

Subsections of ViewerHub

Subsections of User Guide

Package Versioning

Manual Import

A version of Weasis can be manually imported into ViewerHub in the tab “Package”.

manual_import.png manual_import.png

The file to be imported must have a name in this format: “weasis-native xxx.zip”.

location_native_zip_file.png location_native_zip_file.png

This file corresponds to one of the Weasis release versions produced here: https://github.com/nroduit/Weasis/releases/

Import process

The import process of a Weasis version follows these different steps:

  • Retrieval of the “weasis-native xxx.zip” file, decompression and storage of the version’s resources/bundles in minio/S3.
  • Compression of the version’s “resources” folder into a zip file (necessary for Weasis) and storage on S3. resource_zip_compression.png resource_zip_compression.png
  • Update on S3 of the Weasis version compatibility file if the imported version is more recent. minio_mapping-minimal-version.png minio_mapping-minimal-version.png
  • Cache update regarding Weasis version compatibility mapping.
  • Loading of the version’s properties into the database.

Nexus Import

Currently not available, will be implemented later.

Remove Weasis package version

In order to delete a version of Weasis, it is necessary to select the version to delete, then right-click and confirm the deletion.

delete_version_right_click.png delete_version_right_click.png

Deleting a version whose “launch config” is “default” will result in the deletion of all versions linked to this “default”.

delete_default_version_propagation.png delete_default_version_propagation.png

Group-specific versions

It is possible to create a version of Weasis that will only be launched for certain groups of users or hosts.

In the “package” view, click on “Create new group config”.

create_new_package_version_location.png create_new_package_version_location.png

Then select the desired Weasis version (package version + launch config) and the new group to associate then press “Create”.

create_new_package_version.png create_new_package_version.png

The new version will thus be displayed in the list of versions already present.

If the user or host belongs to the group, the previously created configuration will be used to launch Weasis.

Configuring version properties

ViewerHub allows to modify the properties of versions on-the-fly.

To modify a property, it is necessary to open a version and double-click on the property to modify.

For example to modify the name of the viewer for a package/launch config/group:

  • modification of the property “weasis.name”

rename_weasis_name_property.png rename_weasis_name_property.png

  • launching the viewer after modification: the label corresponds to the modified property

result_rename_property.png result_rename_property.png

Internationalization

Import

It is possible to import the translations that will be used by Weasis depending on the version of Weasis launched and the correspondence of this version with the compatibility file.

The name of the file to import must have the format “weasis-i18n-dist-X.X.X-SNAPSHOT.zip”.

The translation zip files to import are present at this address: https://github.com/nroduit/weasis-i18n

In ViewerHub, management of translation packages is located in the “Translation” tab.

manual_import.png manual_import.png

The import will decompress the zip file and load the translation resources into the MinIO S3.

s3_i18n_package.png s3_i18n_package.png

Removal

Deleting a translation version is done by selecting the version and right-clicking on this version and then confirming the deletion.

delete_i18n_package.png delete_i18n_package.png

Package Qualifier

Default values

When calling the ViewerHub, Weasis will send in an Http header the version installed on the client workstation (User-Agent header).

If the corresponding Weasis version has not been installed on ViewerHub and/or when no qualifier has been associated with the user/host/group making the request, a version and/or a qualifier are used by default to retrieve the resources to launch Weasis.

These default values are defined in the config-server in the application-package.yml file.

Qualifier mapping to user/host/group

In order to be able to test specific versions or to be able to launch a version of Weasis different from the default one for a group, it is possible to specify the version to launch for a user/host/group by mapping a particular qualifier.

group_config_creation.png group_config_creation.png

In order to use this feature:

  • the weasis-native.zip file containing the specific version must be loaded into ViewerHub and associated with a group.
  • the “qualifier” property must be defined in the launch_prefered table and must be of type “qualifier”.

launch_preferred_qualifier.png launch_preferred_qualifier.png

  • the mapping of the qualifier to use this version must be done at the launch table level for the target/launch_config/launch_preferred association.
    If this mapping is not done, the default qualifier defined in ViewerHub configuration will be taken into account (see previous paragraph).
    In order to do this mapping, you must define a configuration in the launch table associating the desired group/launch_config, the previous launch_preferred “qualifier” and for the “selection” column specify the qualifier to launch.

launch_qualifier.png launch_qualifier.png

Version Compatibility

Compatibility file

A compatibility file named “version-compatibility.json” is present in each Weasis release
(in the weasis-native.zip file => bin-dist => weasis => conf).

This file contains the mapping between the release version (“release-version”) and the minimum version of Weasis that should be installed on the client workstation (“minimal-version”).

This file also indicates which translation version should be used (“i18n-version”).

version_compatibility_file.png version_compatibility_file.png

Cache

When uploading a new version in ViewerHub or when starting the application (in case the compatibility file is already present in the S3), ViewerHub will construct the different possible combinations from the compatibility file between the versions installed in ViewerHub and the Weasis releases.

These combinations will be stored in a redis cache. This cache is currently refreshed every 24 hours.

So when a client will launch Weasis via ViewerHub, it will directly know which version, i18n, resources to use when launching Weasis on the user computer.

Minio/S3

By importing a new version of Weasis into ViewerHub, if the compatibility file is more recent, ViewerHub will replace the compatibility file present on the S3. This compatibility file will be renamed on S3 “mapping-minimal-version.json”

s3_compatibility_file.png s3_compatibility_file.png

In order to compare if this mapping file is more recent, ViewerHub will compare the version number of the latest release.

Groups

To easily manage your computer network, ViewerHub allows the creation and association of user or host groups.

Creation

Users, hosts, user groups and host groups are represented by ‘targets’.

There are 4 types of target:

  • user
  • host
  • user group
  • host group

To create a target, go to the ‘association’ menu and define the type of target to be created.

target_creation_menu.png target_creation_menu.png

target_creation_popup.png target_creation_popup.png

Group association

To associate a target with a group or a host/user, look for the desired target in the target name section and add the group or host/user in the ‘Belongs to/Member of’ section.

group_association.png group_association.png

It is possible to associate several users with a user group and several hosts with a host group.

group_association_result.png group_association_result.png

It is not possible to mix up the association between a user and a host group or a host in a user group.

Imaging Hub

This page describes how to install the Imaging Hub, a Docker Compose stack for managing dcm4chee PACS, ViewerHub, and related services.

Warning

This stack is designed for development and testing purposes only. It enables debugging ViewerHub and testing integration with dcm4chee PACS. It is not suitable for production use.

Included Services

This stack comprises the following components:

  • dcm4chee: PACS server for storing and retrieving medical images.
  • ViewerHub: Manages resources for different versions of Weasis.
  • MinIO: Object storage server compatible with Amazon S3 APIs.
  • Redis: Cache service storing manifest data for Weasis resources.
  • Postgres: Database backend for ViewerHub and dcm4chee.
  • Keycloak: Manages user authentication and access.
  • Config-server: Manages configuration of all services.
  • Eureka: Provides service discovery for stack components.

Prerequisites

  • Docker
  • Docker Compose CLI

Configurations

This stack supports multiple configurations:

  • Debug (local): Includes all the required stack except ViewerHub and uses local volumes.
  • Unsecure (unsecure): Enables HTTP and uses development-grade settings. dcm4chee and ViewerHub services have no authentication.
  • Secure (secure) [Not yet available]: Enables HTTPS and uses production-grade settings. dcm4chee and ViewerHub services have authentication.

Usage

Run the following commands based on the environment:

  • For debugging ViewerHub:
    ./scripts/start.sh local
    And then run ViewerHub from your IDE

Minio

Minio is an open-source object storage server compatible with Amazon S3 APIs. It is used to store resources required by the different versions of Weasis.

Access the Minio console at: http://localhost:9090

Use the following credentials:

  • User: weasis-manager
  • Password: weasis-manager

Keycloak

Keycloak is an open-source identity and access management server used to authenticate users.

Access the Keycloak console at: http://localhost:8085

Use the following credentials:

  • User: admin
  • Password: admin

Dcm4chee

Dcm4chee is a PACS server that enables storing and retrieving medical images.

Access the dcm4chee console at: http://localhost:8080/dcm4chee-arc/ui2/en/study/study

For secure mode, access the dcm4chee console at: https://localhost:8443/dcm4chee-arc/ui2/en/study/study Use the following credentials:

  • User: admin
  • Password: changeit

ViewerHub

ViewerHub is a web application that manages the resources required by the different versions of Weasis.

Access the ViewerHub console at: http://localhost:8081

Use the following credentials:

  • User: weasis-manager-user
  • Password: weasis-manager-password

Guidelines for development

This page provides guidelines for developing and debugging ViewerHub.

We recommend the use of IntelliJ IDEA because the following instructions are based on it.

Add a Launcher

  • Open Run > Edit Configurations…
  • Aad in VM options the following properties:
  -Duser.timezone=UTC
  -DENVIRONMENT=local
  -DEUREKA_CLIENT_SERVICE_URL_DEFAULT_ZONE=http://localhost:8761/eureka
  -DREGION=local
  -DDATACENTER=local
  -Dserver.port=8081
  -Dmanagement.server.port=19001
  -DBACKEND_URI=http://localhost:8081
  -DDB_HOST=localhost
  -DDB_PORT=45101
  -DDB_NAME=weasis-manager
  -DDB_USER=weasis-manager
  -DDB_PASSWORD=weasis-manager
  -DCONFIGSERVER_URI=http://configdecrypt:987654321@localhost:8888
  -DS3_ACCESS_KEY=access-key
  -DS3_SECRET_KEY=secret-key
  -DS3_ENDPOINT=http://localhost:9080
  -DS3_BUCKET_NAME=weasis-manager-bucket
  -DBACKEND_URI=http://localhost:8081
  • Then clean/install + Run…

ViewerHub

In order to access to ViewerHub:

http://localhost:8081

with

User: weasis-manager-user
Password: weasis-manager-password

Launch Weasis

Once all the steps above completed, launch the below URL to launch Weasis and load the dicom image stored in the dcm4chee pacs:

http://localhost:8081/display/weasis?studyUID=1.3.12.2.1107.5.1.4.54023.30000004093013443132800000021&archive=dcm4chee-local

This URL works with the Imaging Hub stack. If you are using a different setup, you may need to adjust the URL accordingly.

For more information, refer to the Launch APIs documentation.

Connectors

This page outlines the configuration of connectors used by ViewerHub to connect to DICOM archives.

Model

In order to create the Weasis manifest, connectors are configured to enable connections to various PACS or VNA systems.
Three types of connectors are defined in the configuration server: DB, DICOM, and DICOM_WEB.

These connectors are defined according to this model: connector_model.yml

Global connector configuration

The global connector configuration is defined as follows:

connector:
    # If value is present: use the connectors specified, if not present or wrong connector ids: use all the valid connectors defined in the config
    default: # connectorId1, connectorId2

    config:
        connector-id:
            type:  # Type of connector used => DB, DICOM, DICOM_WEB

            # ------- Search Criteria ----
            search-criteria:
                deactivated: # If a search criteria needs to be deactivated=> SOP_INSTANCE_UID, SERIE_INSTANCE_UID, STUDY_INSTANCE_UID, STUDY_ACCESSION_NUMBER, PATIENT_ID

WADO configuration

WADO configuration is used by Weasis to retrieve images from manifest

WADO:
    authentication:
        # Used to force usage of basic authentication parameters to retrieve images (even if request is authenticated)
        force-basic: # true/false

        # If request is authenticated,retrieve the token from the authenticated request and inject it in the manifest for Weasis to get the images
        oauth2:
            url: # Url used to retrieve images by adding authenticated request token in manifest

        # Retrieve the images by using this basic authentication parameters
        basic:
            url: # Url used to retrieve images by using basic authentication
            login:  # Basic credential login
            password: # Basic credential password

Database connector

This connector is used to be able to connect to the PACS database in order to find the studies, series, instances of images for the construction of the manifest.

db-connector:
    user: # Database user
    password: # Encoded password
    uri: # Database uri
    driver: # Database driver
    query:
        select: # SQL query to retrieve patientName, patientId, patientBirthDate, patientSex, studyInstanceUid, studyDate, accessionNumber, studyId, referringPhysicianName, studyDescription, seriesInstanceUid, modality, seriesDescription, seriesNumber, sopInstanceUid, instanceNumber
        accession-number-column: # Accession number column used in the SQL query above
        patient-id-column: # Patient id column used in the SQL query above
        study-instance-uid-column: # Study instance uid column used in the SQL query above
        serie-instance-uid-column: # Serie instance uid column used in the SQL query above
        sop-instance-uid-column: # Sop instance uid column used in the SQL query above

DICOM connector

This connector is used to be able to connect to the pacs in DICOM in order to find the studies, series, instances of images for the construction of the manifest.

dicom-connector:
    calling-aet: # Calling aet
    aet: # Aet
    host: # Host
    port: # Port

DICOM Web connector

Not implemented yet

Launch APIs

Launch Weasis from your own web application

The display service is available at the URL: http://localhost:8081/display/weasis

To launch Weasis from your own web application, you need to build the URL with the following parameters:

  • archive: The archive name to be used to retrieve the study. The list of archives is defined in the config server.
  • patientID: The Patient ID of the study to be displayed. Note to handle a universal patientID, add IssuerOfPatientID like in hl7: patientID=1168514^^^issuerValue
    • Ex: http://localhost:8081/display/weasis?patientID=1168514&archive=dcm4chee-local
    • Ex with multiple patientID: http://localhost:8081/display/weasis?patientID=1168514&patientID=2023231696&archive=dcm4chee-local
    • Ex with URL encoding of separators ^^^ and IssuerOfPatientID value test: http://localhost:8081/display/weasis?patientID=1168514%5E%5E%5Etest&archive=dcm4chee-local
  • studyUID: The Study Instance UID of the study to be displayed.
    • Ex: http://localhost:8081/display/weasis?studyUID=1.3.12.2.1107.5.1.4.54023.30000004093013443132800000021&archive=dcm4chee-local
  • accessionNumber: The Accession Number of the study to be displayed.
    • Ex: http://localhost:8081/display/weasis?accessionNumber=2066852&archive=dcm4chee-local
  • seriesUID: The Series Instance UID of the series to be displayed.
    • Ex: http://localhost:8081/display/weasis?seriesUID=1.3.12.2.1107.5.1.4.54023.30000004093016410718700008612&archive=dcm4chee-local
    • Ex with multiple studies and series: http://localhost:8081/display/weasis?studyUID=1.3.6.1.4.1.5962.1.2.2.20031208063649.855&studyUID=1.3.6.1.4.1.5962.1.2.2.20031208063649.857&seriesUID=1.2.840.113704.1.111.4924.1273631010.17&archive=dcm4chee-local
  • objectUID: The SOP Instance UID of the object to be displayed.
    • Ex: http://localhost:8081/display/weasis?objectUID=1.3.12.2.1107.5.1.4.54023.30000004093016410718700010432&archive=dcm4chee-local

Filters

  • mostRecentResults: The number of the most recent studies to be displayed.
    • Ex: http://localhost:8081/display/weasis?patientID=11685148&mostRecentResults=2
  • modalitiesInStudy: Filter the studies containing the specified modalities.
    • Ex with only CT or XA: http://localhost:8081/display/weasis?patientID=1168514&modalitiesInStudy=CT,XA&archive=dcm4chee-local
  • containsInDescription: Filter the studies containing the specified string in the study description. Note that the search is case-insensitive and diacritic-insensitive.
    • Ex with only coronary or thorax: http://localhost:8081/display/weasis?patientID=1168514&containsInDescription=coronary,thorax&archive=dcm4chee-local
  • lowerDateTime: Filter the studies which are older than the specified date.
    • Ex CT older than 01.01.2010 12:00:00: http://localhost:8081/display/weasis?patientID=1168514&modalitiesInStudy=CT&lowerDateTime=2010-01-01T12:00:00Z&archive=dcm4chee-local
  • upperDateTime: Filter the studies which are more recent than the specified date.
    • Ex CT more recent than 01.01.2010 12:00:00: http://localhost:8081/display/weasis?patientID=1168514&modalitiesInStudy=CT&upperDateTime=2010-01-01T12:00:00Z&archive=dcm4chee-local
Note

You can restrict the types of UIDs (patientID, studyUID, accessionNumber, seriesUID, objectUID) that services can access. Refer to the “request.ids” section in the configuration file to specify which UIDs are permitted. By default, all UIDs are allowed.

Launch Weasis with IHE IID profile

he Invoke Image Display Profile enables an Image Display Invoker, typically a non-image-aware system such as an EHR, PHR, or RIS, to request the display of patient studies, which are then presented by an image-aware system like an Image Display (PACS). The display service is available at the URL: http://localhost:8081/display/IHEInvokeImageDisplay

To launch Weasis with IHE IID profile, you need to build the URL with the following parameters:

  • archive: The archive name to be used to retrieve the study. The list of archives is defined in the config server.
  • requestType: The type of the request (PATIENT, STUDY)
  • patientID: The Patient ID of the study to be displayed. Note to handle a universal patientID, add IssuerOfPatientID like in hl7: patientID=1168514^^^issuerValue
  • studyUID: The Study Instance UID of the study to be displayed.
    • Ex: http://localhost:8081/display/IHEInvokeImageDisplay?requestType=STUDY&studyUID=1.3.12.2.1107.5.1.4.54023.30000004093013443132800000021
  • accessionNumber: The Accession Number of the study to be displayed.
    • Ex: http://localhost:8081/display/IHEInvokeImageDisplay?requestType=STUDY&accessionNumber=2066852

Filters

  • mostRecentResults: The number of the most recent studies to be displayed.
    • Ex: http://localhost:8081/display/IHEInvokeImageDisplay?requestType=PATIENT&patientID=11685148&mostRecentResults=2
  • modalitiesInStudy: Filter the studies containing the specified modalities.
    • Ex studies containing CT or XA: http://localhost:8081/display/IHEInvokeImageDisplay?requestType=PATIENT&patientID=11685148&modalitiesInStudy=CT,XA
  • containsInDescription: Filter the studies containing the specified string in the study description. Note that the search is case-insensitive and diacritic-insensitive.
    • Ex studies containing coronary or thorax: http://localhost:8081/display/IHEInvokeImageDisplay?requestType=PATIENT&patientID=11685148&containsInDescription=coronary,thorax
  • lowerDateTime: Filter the studies which are older than the specified date.
    • Ex studies older than 01.01.2010 12:00:00: http://localhost:8081/display/IHEInvokeImageDisplay?requestType=PATIENT&patientID=11685148&lowerDateTime=2010-01-01T12:00:00
  • upperDateTime: Filter the studies which are more recent than the specified date.
    • Ex studies more recent than 01.01.2010 12:00:00: http://localhost:8081/display/IHEInvokeImageDisplay?requestType=PATIENT&patientID=11685148&lowerDateTime=2010-01-01T12:00:00

Manifest

Manifest

The manifest contains the list of exams, series, and instances to retrieve when loading images by Weasis. It is represented in this format.

The creation of the manifest occurs when a client calls ViewerHub to launch Weasis through the launch URL using the Launch APIs.

Construction

According to the search criteria of the request, ViewerHub constructs the manifest through connectors.

There are 3 types of connectors:

  • DB (database)
  • DICOM (DICOM DIMSE)
  • DICOM_WEB (DICOMWeb connector will be implemented later).

DB queries or DICOM calls are made to retrieve the necessary information to populate the manifest according to the search criteria.

The connectors are defined according to a model in the config server.

Cache Redis

Once the manifest built, it will be stored in a Redis cache for a defined period (TTL currently 3 minutes).

This mechanism allows multiple instances of ViewerHub, as the retrieval of the manifest by Weasis is asynchronous.

It is also useful when the user requests the visualization of the same study within the TTL period: the manifest will be retrieved directly from the Redis cache.

The key for retrieving the manifest corresponds to the hash of the search criteria.

Cryptography

When launching the Weasis viewer with ViewerHub, a URL containing search criteria in “query parameters” is used.

It is possible to encrypt these search parameters when launching the Weasis viewer in order to not transmit certain sensitive data in plain text (e.g. patient identifier).

To enable this feature, the application-cryptography.yml file in the config-server must be modified by setting the “enabled” field below to true.

# - Cryptography
cryptography:
    enabled: false
    password: '{cipher}'
    salt: '{cipher}'

Defining a password and a salt is also necessary to encode/decode the search parameters.

The same encryption algorithm must be used on the client side (encryption) and on the ViewerHub side (decryption).
